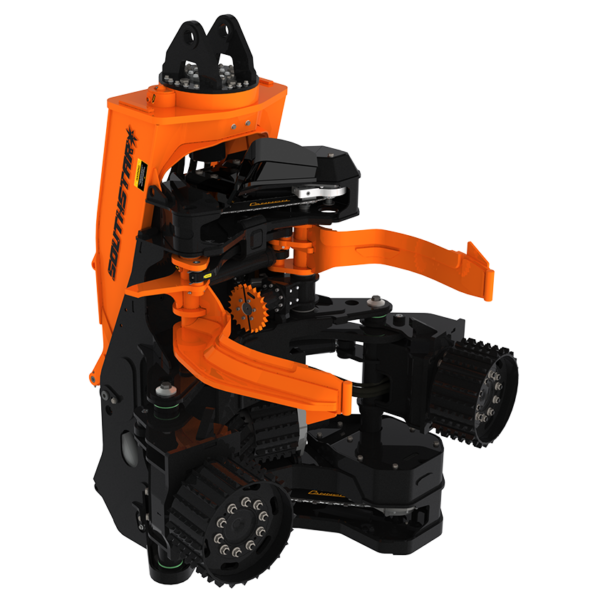

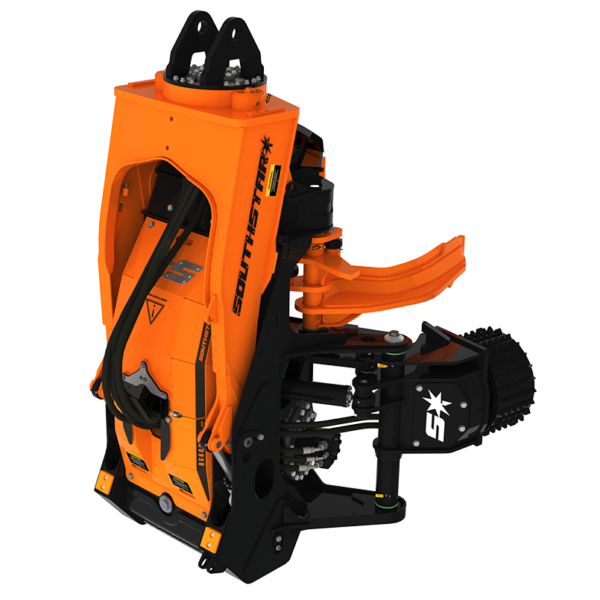

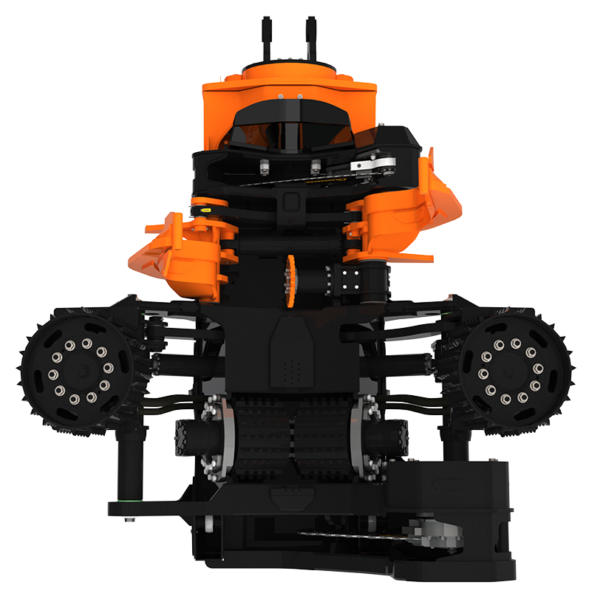

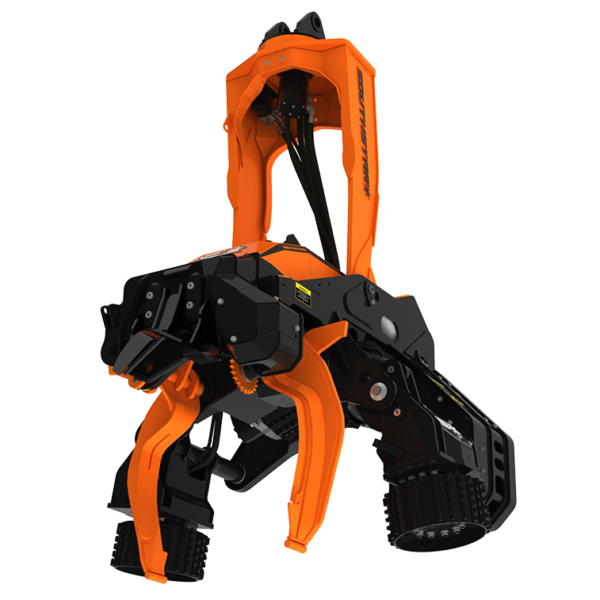

The QS600 is designed for medium to large sized wood with an optimum operating size of 22 – 26″ in diameter. This original large multi-tree processor is packed full of design features that set it apart from the competition.
|
|
|
|
| STANDARD CONFIGURATION | METRIC | IMPERIAL |
|---|---|---|
WEIGHTS & DIMENSIONS | ||
Weight (Including Rotator Top & Link) | 3,572 kg | 7,875 lbs |
Height (In Harvesting Position) | 3,018 mm | 119"" |
Maximum Width (With Head Open) | 2,019 mm | 79.5"" |
Degree of Rotation | Continuous 360° | |
DRIVE SECTION | ||
Number of Drive Rollers | 4 | |
Motor Size (Drive Arm) | 1,048 cc | |
Motor Size (Fixed Center Drive) | 630 cc | |
Maximum Drive Roller Opening (Diameter) | 1,120 mm | 44"" |
Maximum Drive Roller Closing (Diameter) | 80 mm | 3.1"" |
Feed Speed | 4.8 – 5.7 mps | 15.5 – 18.7 fps |
DELIMB SECTION | ||
Maximum Delimb Opening (Diameter) | 750 mm | 29.5"" |
Minimum Delimb Closing (Diameter) | 80 mm | 3.1"" |
2 Stem Processing +/- 1"" Accuracy | 300 mm | 12"" |
3 Stem Processing +/- 1"" Accuracy | 200 mm | 8"" |
BUTT SAW | ||
Saw Type | SS 3/4 | SS 3/4 |
Bar Size | 965 mm | 38"" |
Chain Pitch | 19.05 mm | 3/4"" |
Chain Auto Tension | Standard | |
Laser Find End | Standard | |
TOP SAW | ||
Bar Size | 710 mm | 28"" |
Chain Pitch | 10.26 mm | 0.404"" |
CARRIER REQUIREMENTS | ||
Carrier Size (Tracked) | 25,000 – 30,000 kg | 25 – 30 ton |
Maximum Pressure | 35 mpa | 5,076 psi |
Optimum Flow @ Pressure | 300 – 350 lpm @ 15 mpa | 79 – 93 gpm @ 2,175 psi |
CONTROL SYSTEM | ||
Full Optimization | Optional | |
Electronic Calipers (For Electronic Calibrations) | Optional | |
CONFIGURATIONS | ||
Butt Saw Chain Grease System | Optional | |
Continuous 360 Rotation | Standard | |
Startrax (Satellite Communication System) | Optional |
