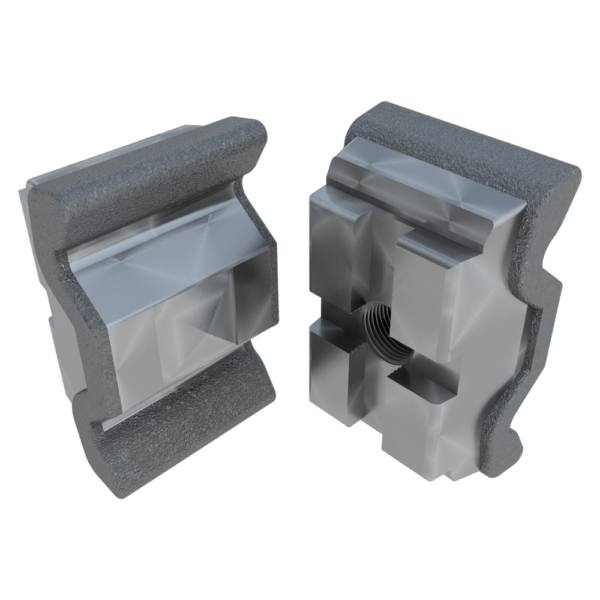

QG1806

Optimum wear protection with additional carbide weld material along the sides to help protect the hammer as well as provide superior wear. Designed for grinding Green Waste, Forestry Slash, C&D Materials and Re-Grind

QG1806

Material

Alloy Steel Forged Tip with Unique Carbide Grit Welded Overlay

Product Features

Custom Forged bit with a unique formulation of fine and coarse carbide grit, with a deep weld penetraion process. Superior wear resistance, featuring carbide side welds with additional corner button overlay.

Used on

CBI

OEM Part Numbers​

CBI 4000, 4800, 5060, 5400, 5400SE, 5800, 6060, 6400, 6800, 8600

Imperial

METRIC

Style

Carbide Tip Overlay

Kerf

4 in
101.6 mm

Width

Width at Base

Height at Ends

2 in
50.8 mm

Back Length

3.75 in
109.22 mm

Back Width

2.25 in
57.15 mm

Center to Center Bolt Hole

NA

Bolt Size

1 1/8″ UNF

Weight

6.747 lb
3.06 kg
