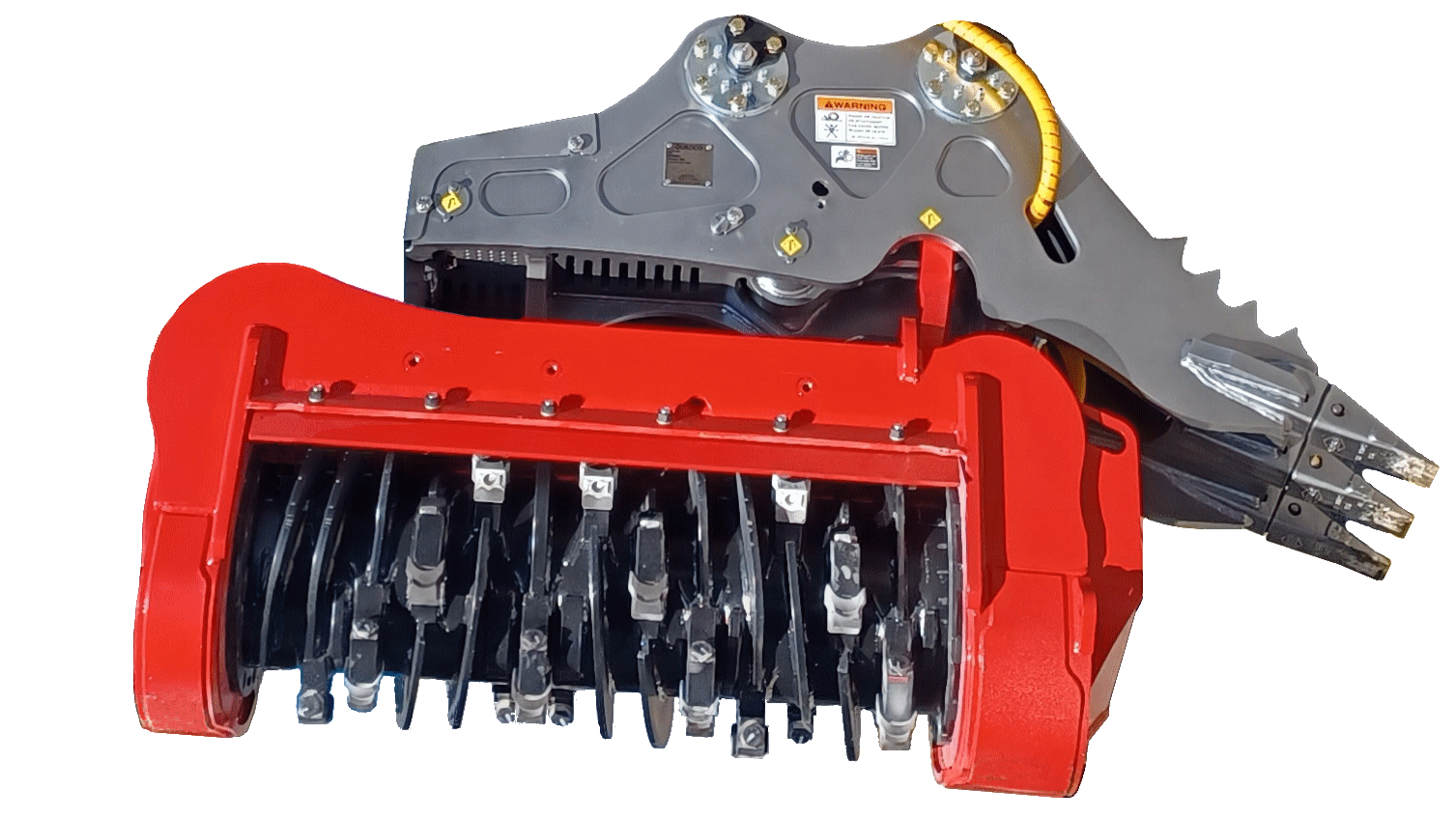

Quadco’s new 62-inch drum mulcher is the latest addition to a current line up of tough, reliable and productive forestry mulching attachments. It is an extreme duty attachment, best suited to 22-35 ton excavators and feller bunchers. To improve productivity and handling of ground material, a 102-degree lateral tilt is offered as standard equipment as well as a fixed heel equipped with replaceable bucket teeth. The drum has a spiral-shaped bite limiter that also spreads material evenly across the width. It is available with a variety of Quadco teeth, all-steel or carbide, to suit any application. Built-in universal boom adapter provides equipment dealers, particularly rental fleets, flexibility, and quick turn arounds to meet the demands of their client’s businesses – pins and sleeves only can be swapped when a change of carriers is required.
|
|
|
STANDARD CONFIGURATION | METRIC | IMPERIAL |
---|---|---|
WEIGHTS & DIMENSIONS | ||
Weight (incl. lateral tilt - heel - typical bolt-on sleeves & pins) | 2,495 kg | 5,500 lbs |
Overall height | 1,524 mm | 60"" |
Width | 864 mm | 34"" |
Length (max. length with heel) | 2,769 mm | 109"" |
Lateral tilt angle | 102° (+ 52°/-50°) | |
DRUM | ||
Cutting swath | 1,575 mm | 62"" |
Drum diameter﹐ tip-to-tip | 610 mm | 24"" |
Number of teeth | 30 | |
Drum speed | 2,200 rm | |
HYDRAULICS | ||
Recommended carrier size | 25 - 35 ton | |
Variable displacement motors | 1 x 170 cc & 1 x 110 cc | |
Minimum flow@ pressure | 322 l/min @ 240 bar | 85 gpm @ 3 500 psi |
Optimum flow @ pressure | 416 l/min @ 240 bar | 110 gpm @ 3 500 psi |
Maximum pressure | 340 bar | 5,000 psi |
