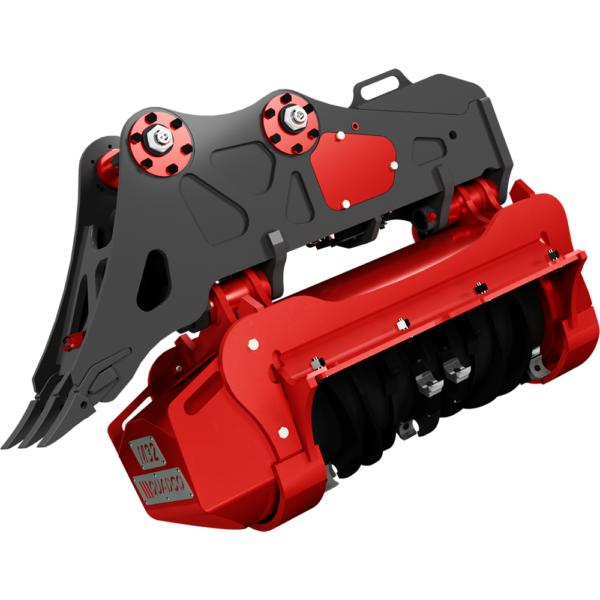

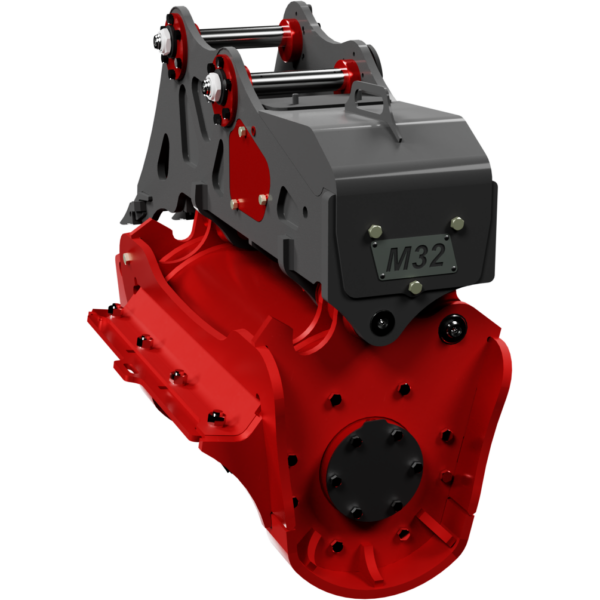

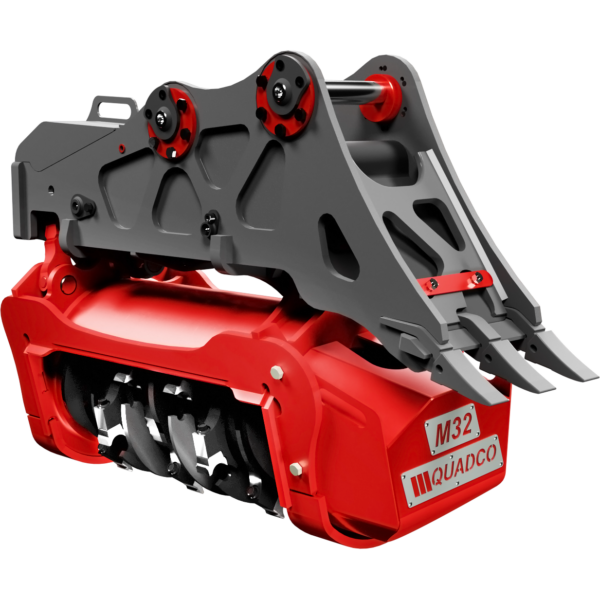

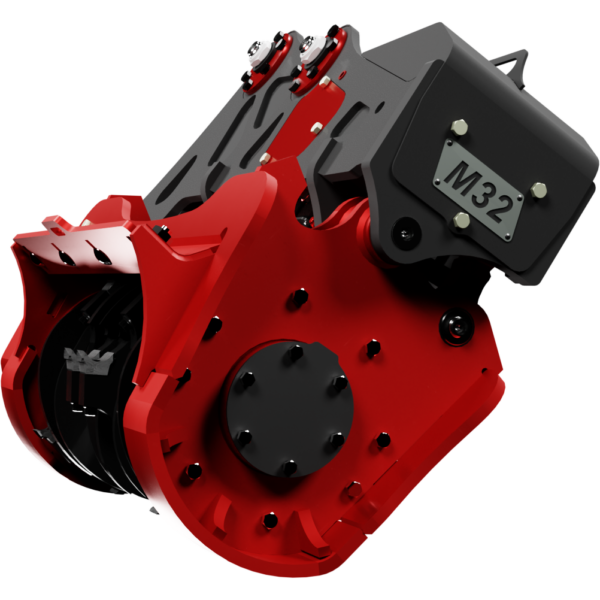

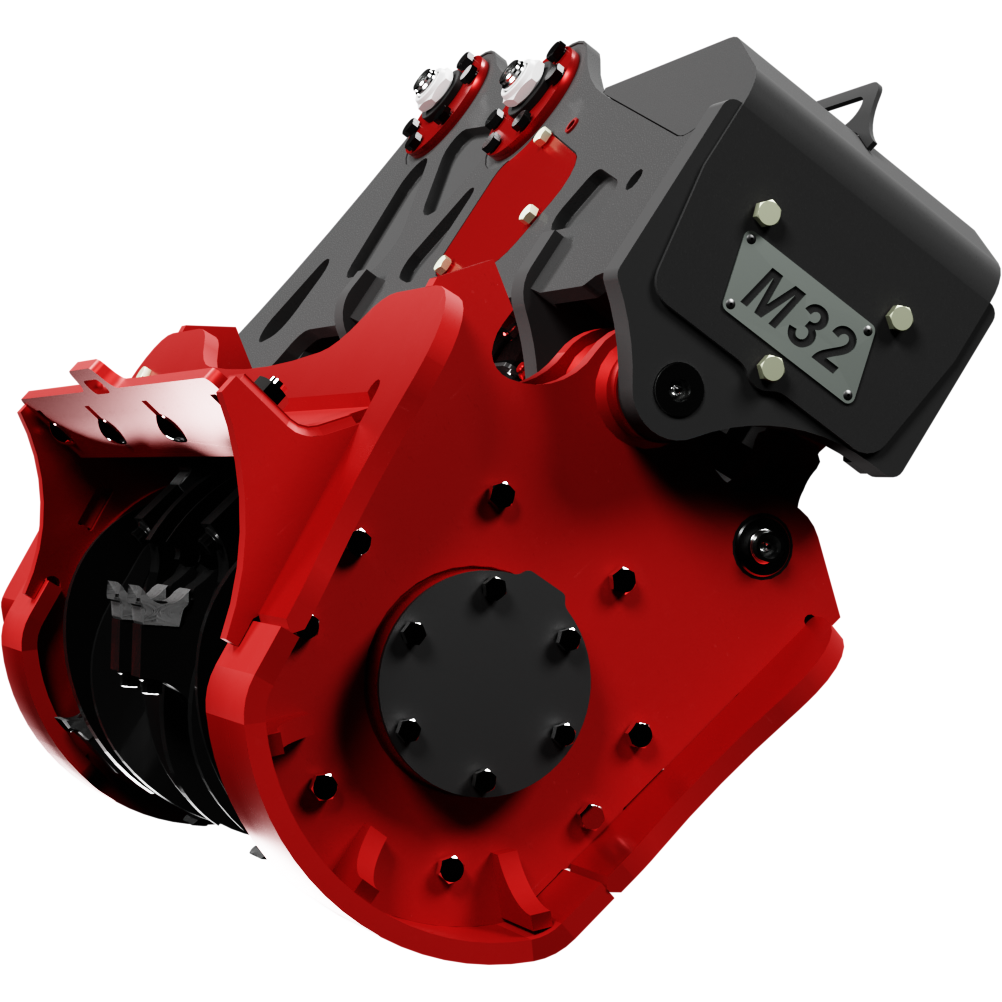

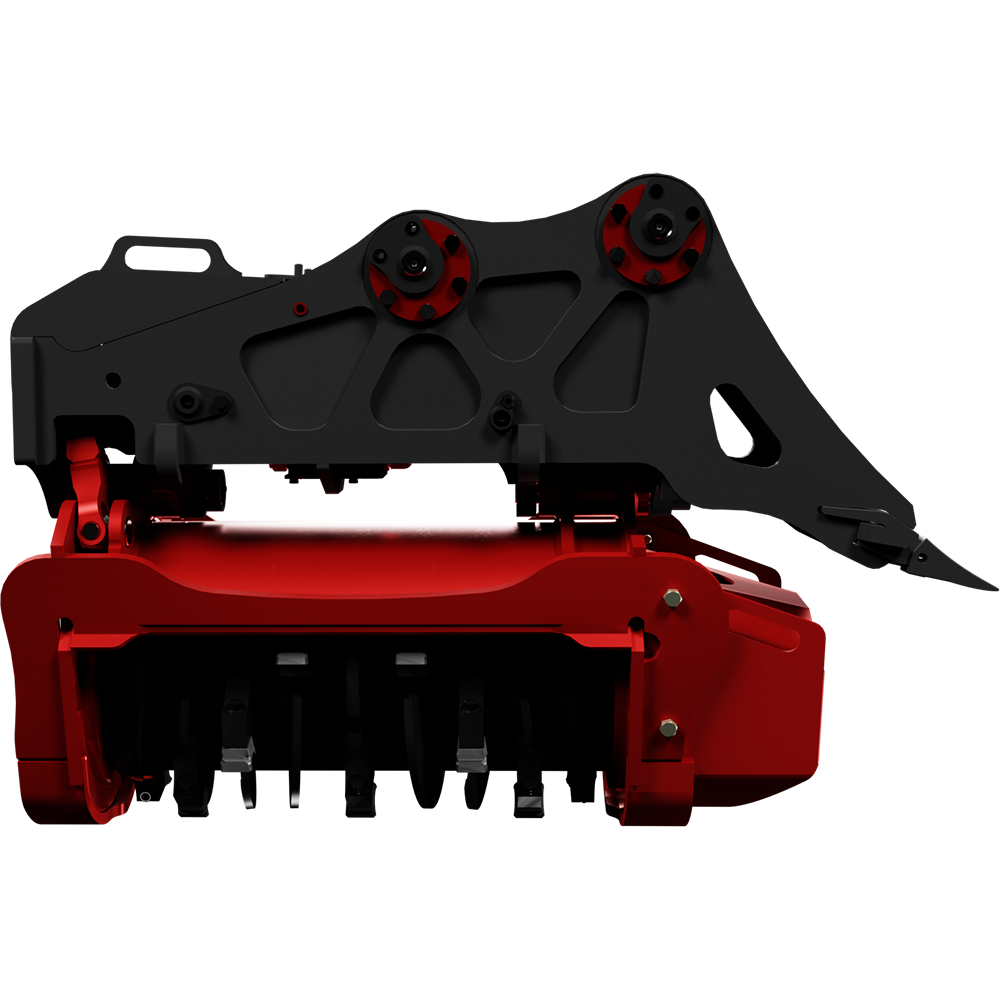

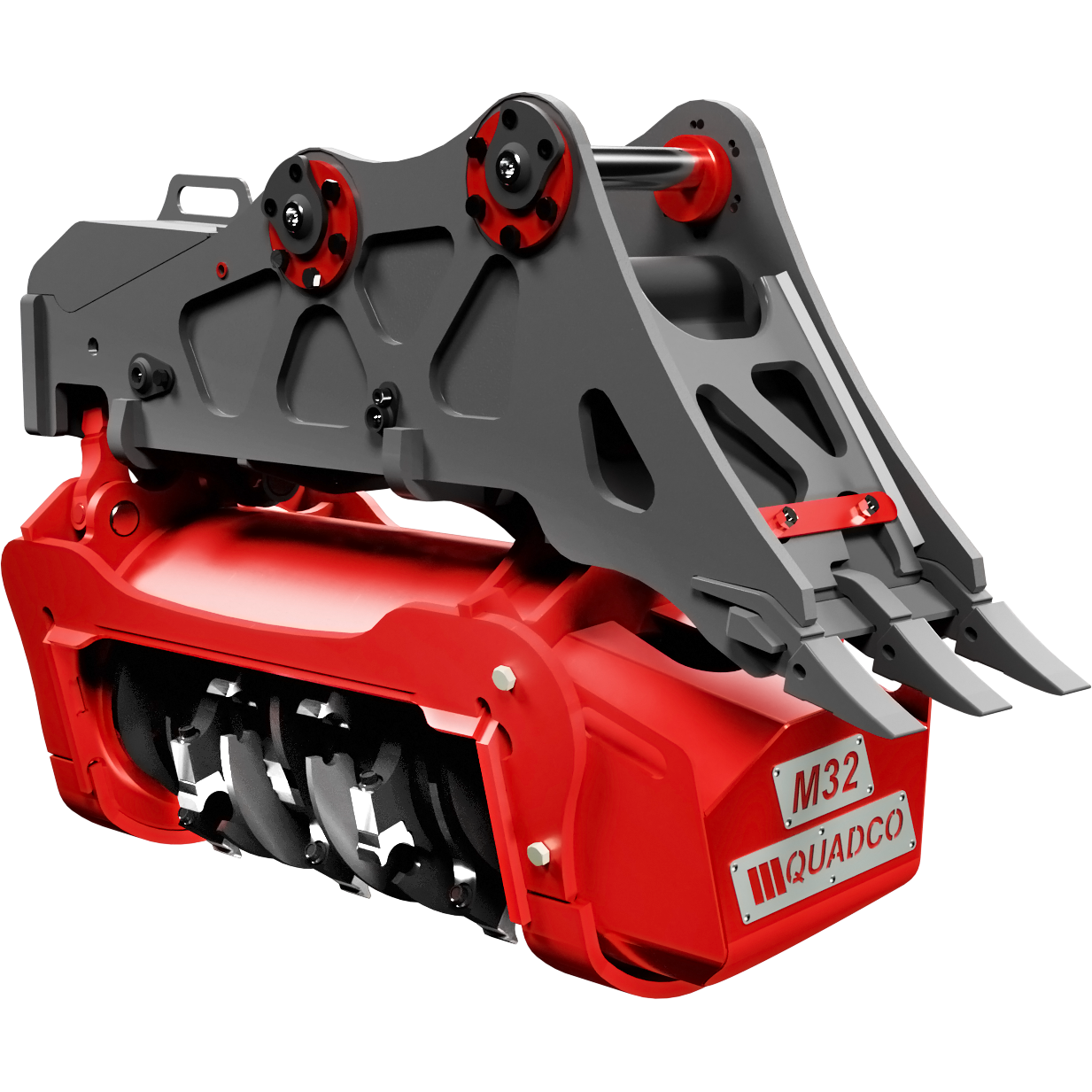

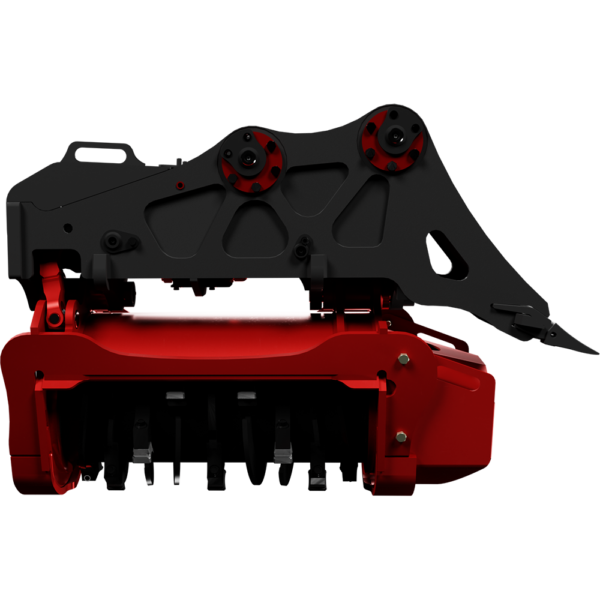

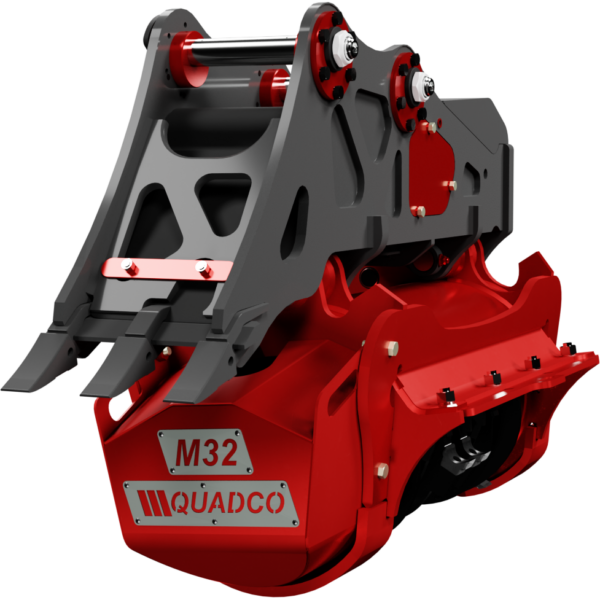

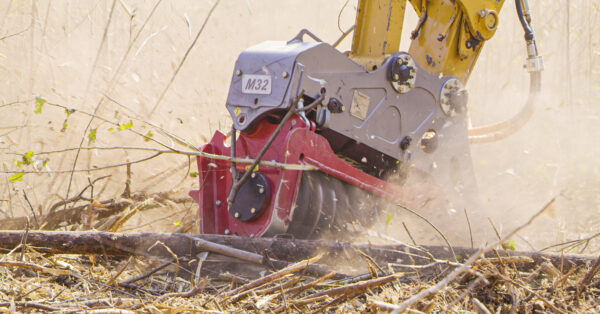

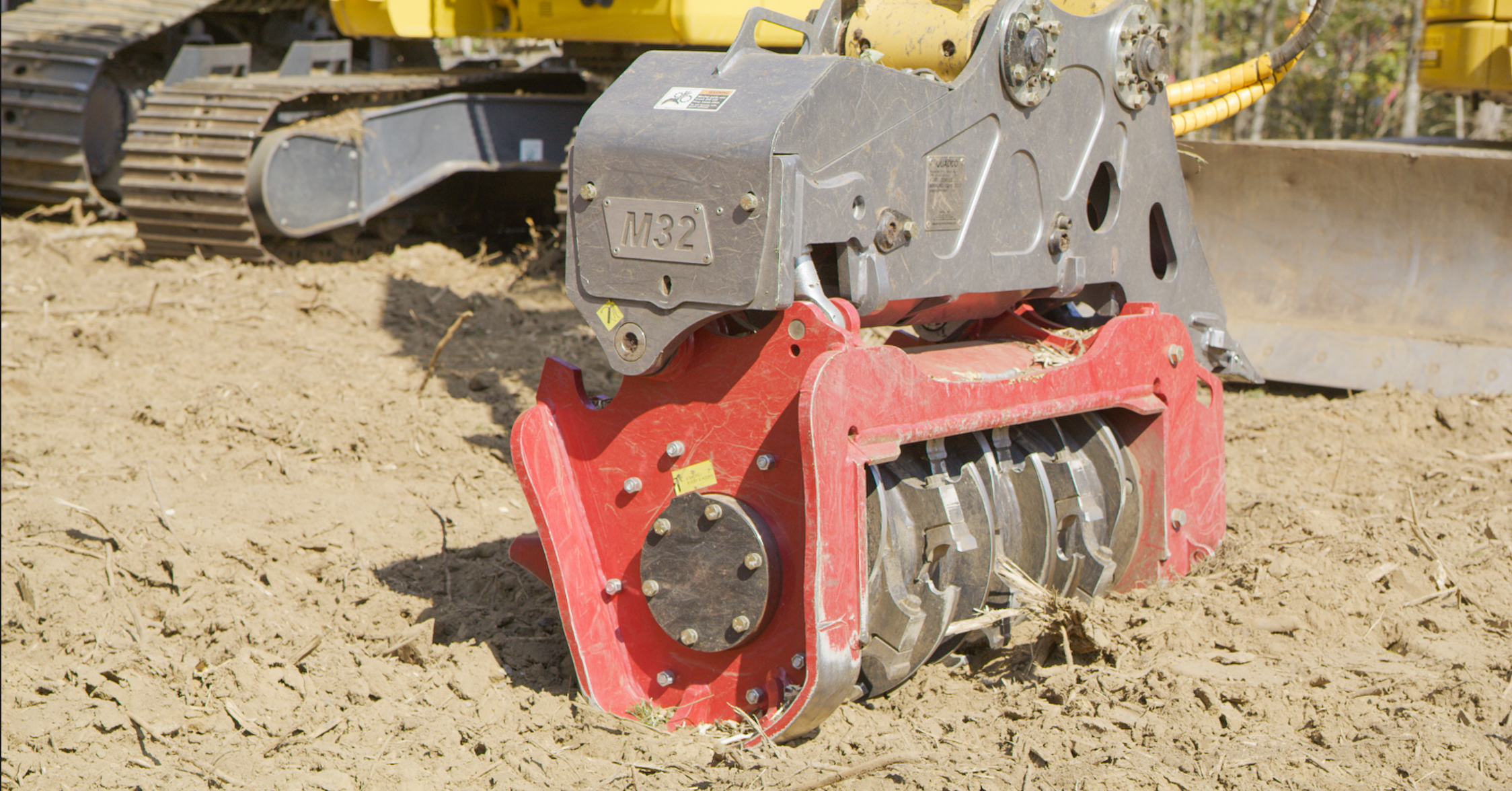

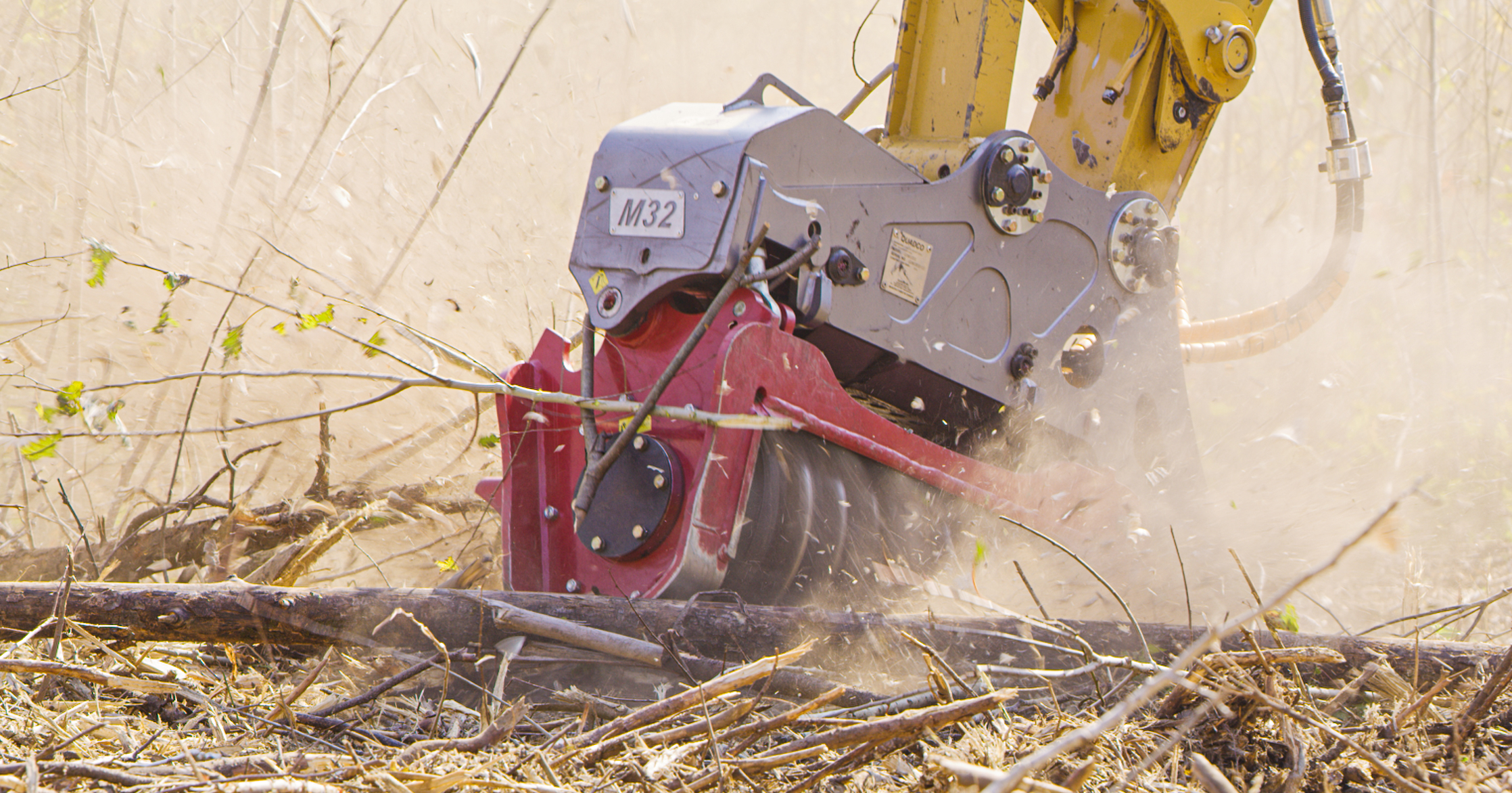

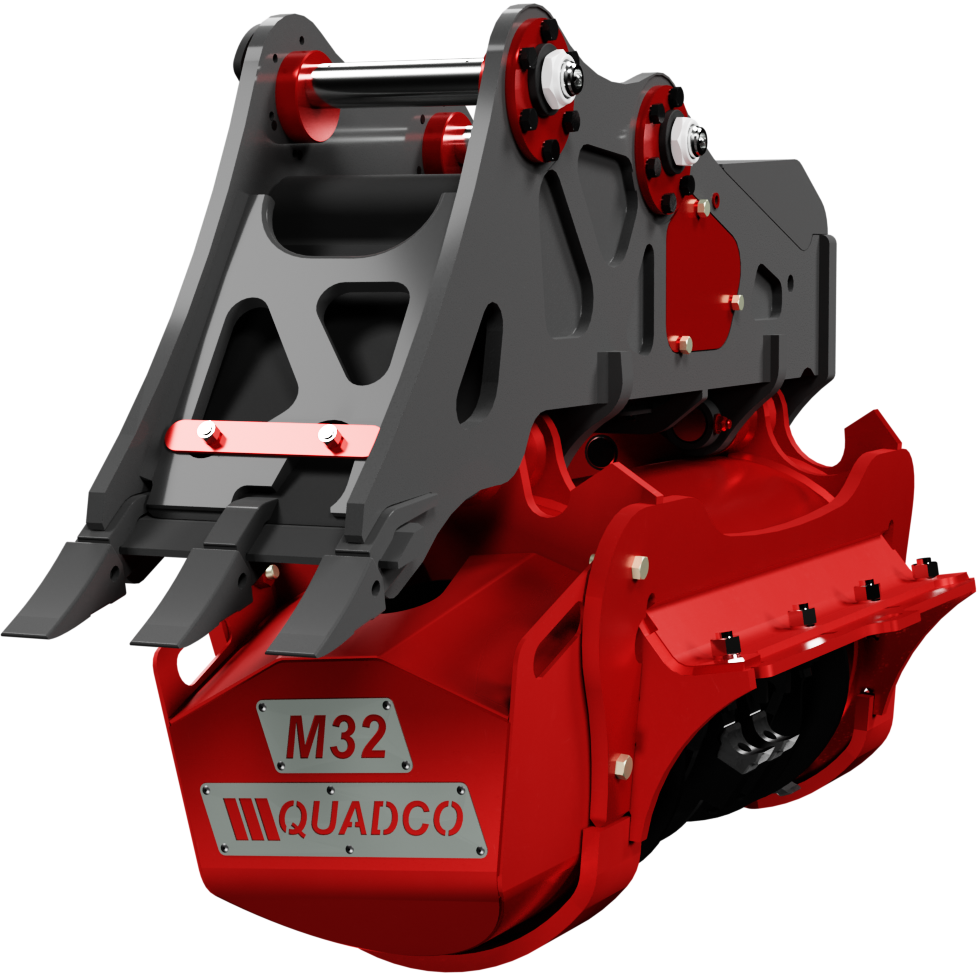

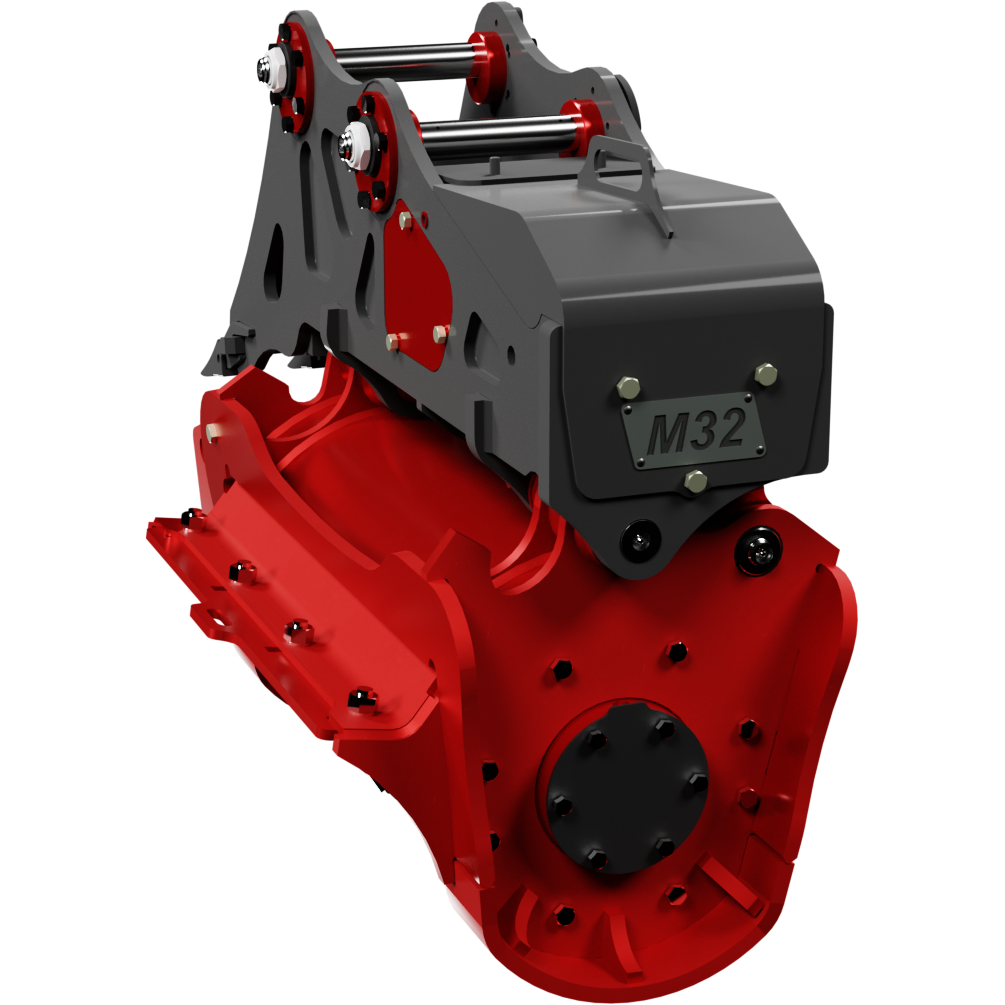

Quadco’s new 32-inch drum mulcher is the latest addition to a current lineup of tough, reliable and cost-efficient forestry mulching attachments. It is a versatile head, compact in dimensions but heavy duty, best suited to 8-15 ton excavators. To improve productivity and handling of ground material, a 100-degree lateral tilt is offered as standard equipment as well as a fixed heel equipped with replaceable bucket teeth. The drum is available with a variety of Quadco teeth, all-steel or carbide, to suit any application. The head will outproduce and outlive many other mass-produced brands, often built too light for professional contractors. Built-in universal boom adapter provides equipment dealers, particularly rental fleets, flexibility and quick turnarounds to meet the demands of their client’s businesses – pins and sleeves only can be swapped when a change of carriers is required.
|
|
|
STANDARD CONFIGURATION | METRIC | IMPERIAL |
---|---|---|
WEIGHTS & DIMENSIONS | ||
Weight (Including lateral tilt - heel - typical bolt-on sleeves & pins) | 770 kg | 1,700 lbs |
Overall Height | 1,041 mm | 41"" |
Width | 610 mm | 24.5"" |
Length | 1,499 mm | 59"" |
Lateral Tilt Angle | 100° (+60°-40°) | |
DRUM | ||
Cutting Swath | 813 mm | 32"" |
Drum Diameter﹐ Tip-to-Tip | 457 mm | 18"" |
Number of Teeth | 18 | |
Drum Speed | 2,800 грm | |
HYDRAULICS | ||
Recommended Carrier Size | 8 - 15 ton | |
Variable Displacement Motor | 60 or 85 cc | |
Minimum Flow @ Pressure | 65 min @ 240 bar | 17 gpm @ 3,500 psi |
Optimum Flow @ Pressure | 140 l/min @ 240 bar | 37 gpm @ 3,500 psi |
Maximum Pressure | 340 bar | 5,000 psi |
