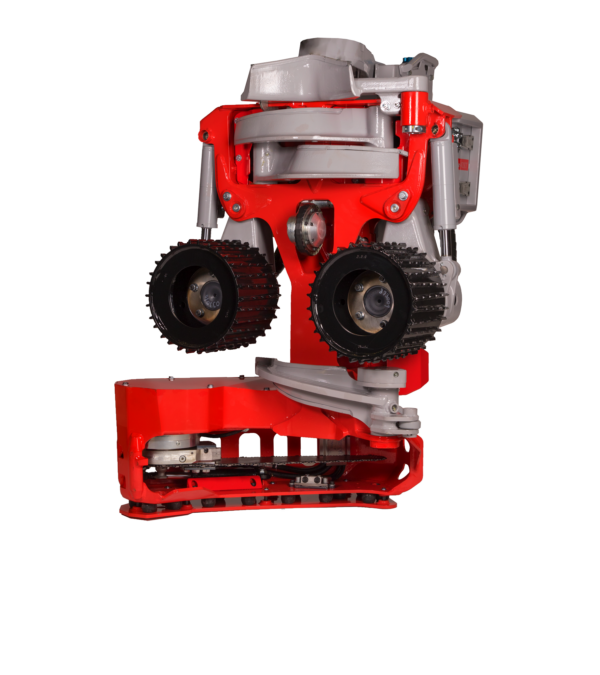

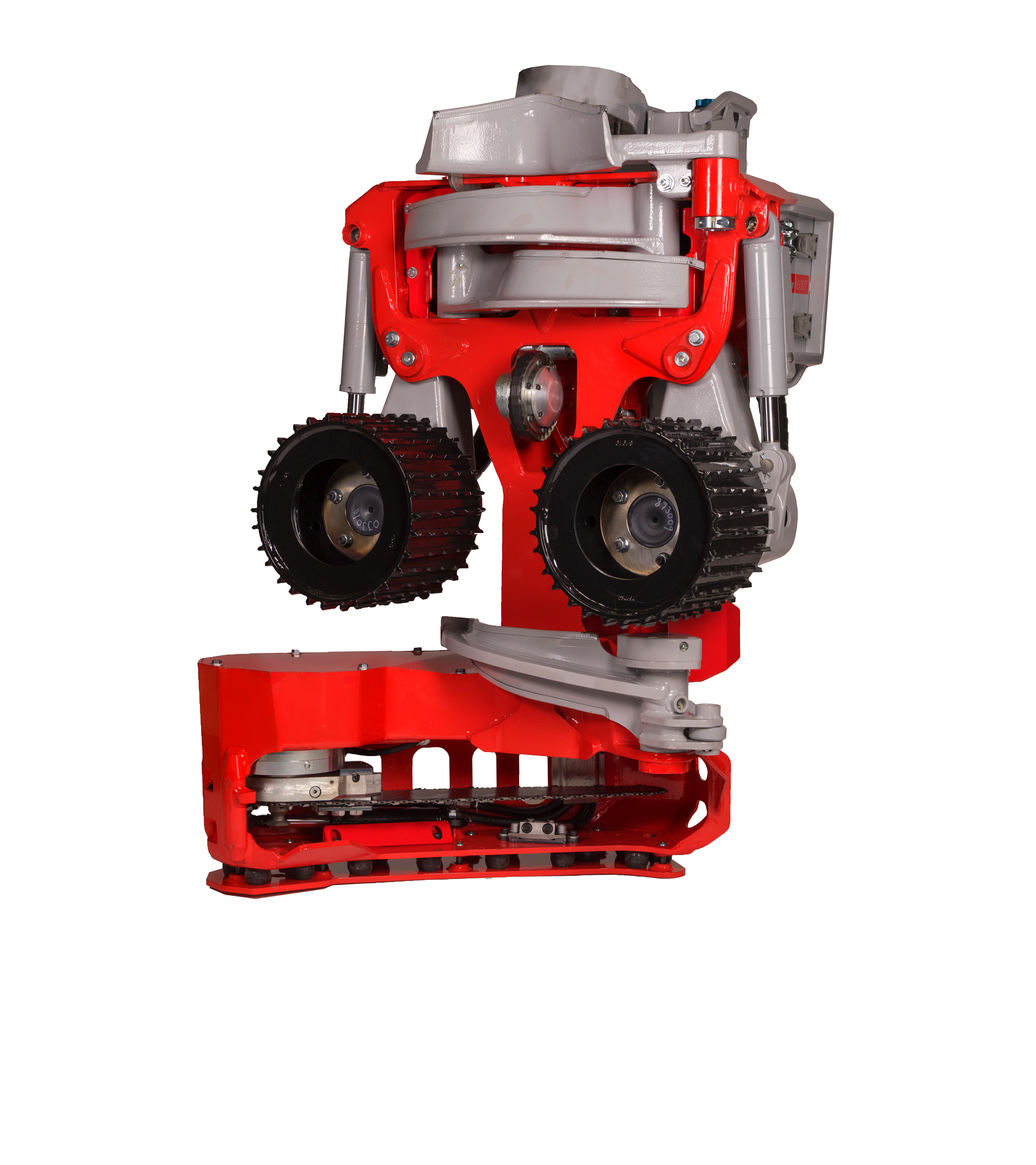

The 4000T has an entirely new frame construction where the saw box has been moved backwards and outwards, the higher part of the frame inched forward reducing friction and clogging in the measuring wheel. The new hydraulics layout greatly improves power and feeding speed making this 833 kg* harvesting head the ultimate choice for thinning and lighter final cuts.
|
|
|
| STANDARD CONFIGURATION | METRIC | IMPERIAL |
|---|---|---|
WEIGHTS & DIMENSIONS | ||
Weight (Including Rotator Top & Link) | 777 kg | 1,713 lbs |
Height (Without Rotator & Link) | 142.6 cm | 56.1"" |
Maximum Width (With Head Open) | 118.5 cm | 46.7"" |
Maximum Width (With Head Closed) | 103.5 cm | 40.8"" |
DRIVE SECTION | ||
Number of Drive Rollers | 2 | |
Motor Size (Drive Arm) | 398 cc | 24.3 in³ |
Maximum Drive Roller Opening (Diameter) | 460 mm | 18.1"" |
Maximum Drive Roller Closing (Diameter) | 12 mm | 0.5"" |
Feed Speed | 5.0 mps | 16.4 fps |
DELIMB SECTION | ||
Maximum Delimb Opening | 517 mm | 20.4"" |
Maximum Delimb Full Coverage | 350 mm | 13.8"" |
Minimum Delimb Closing (Diameter) | 12 mm | 0.5"" |
BUTT SAW | ||
Saw Type | 218 | |
Maximum Cut (Diameter) | 49 cm | 58 cm | 19.3"" | 22.8"" |
Bar Size | 60 cm | 67 cm | 23.6"" | 26.4"" |
Chain Pitch | 0.404 mm | 0.016"" |
Motor Size | 19 cc | 1.16 in³ |
Chain Auto Tension | No | |
Oil Tank Capacity | 4 L | 1.1 gal |
CARRIER REQUIREMENTS | ||
Carrier Size (Tracked) | 13 – 18 ton | |
Carrier Size (Wheeled) | 13 – 20 ton | |
Maximum Pressure | 280 bar | 4,061 psi |
CONTROL SYSTEM | ||
Model | Log Mate 510 | |
Optional Additions | Yes | |
Full Optimization | Optional | |
Electronic Calipers (For Electronic Calibrations) | Optional |
